The diminished scale is one of the most used symmetrical scale in jazz music.

This is an eight-note scale (octatonic) built by alternating whole and half steps.

There are two modes depending on whether we start to play with the whole tone, called " fully diminished scale " (also called Whole-half diminished), or with the half-tone, called " dominant diminished scale " (or Half-whole diminished).

These modes are both based on an equal division of the octave into four (minor thirds divisions).

The Two Modes of The Diminished Scale?

They are often confused yet it is very simple, one is used over diminished seventh chords (dim7) and the other one over dominant seventh chords (7th).

Fully Diminished

The whole-half diminished scale also named "inverted diminished scale" or "fully diminished" is constructed using a repeat pattern of whole and half steps.

The formula is 1 - 9 - b3 - 11 - b5 - #5 - 13 - 7.

Half-whole Diminished

The half-whole diminished scale (the diminished scale) known as "dominant diminished scale" is constructed by repeating a pattern of half and whole steps. It is generally played over dominant 7 chords (7b9).

The interval pattern is 1 - b9 - #9 - 3 - #11 (or b5) - 5 - 13 (6) - b7.

Whole-Half Diminished Scale Aka Fully Diminished

The whole half diminished scale also known as "Fully Diminished Scale" is an eight-tone scale, built by alternating whole steps and half steps, hence its name. It is used over diminished seventh chords (dim7).

The formula is 1 - 9 - b3 - 11 - b5 - #5 - 13 - 7.

Because of its symmetry there are only three scales, C diminished scale, Db diminished scale and D diminished scale.

In other words, C, Eb, Gb and A diminished scales contain the same notes. Db, E, G and Bb diminished scales are made up of the same notes.

D , F, Ab and B diminished scales are also related.

C diminished scale	C	D	Eb	F	Gb	Ab	A	B
Db diminished scale	Db	Eb	E	F#	G	A	Bb	C
D diminished scale	D	E	F	G	Ab	Bb	B	C#
Formula	1	9 (2)	b3	11 (4)	b5	#5	13 (6)	7

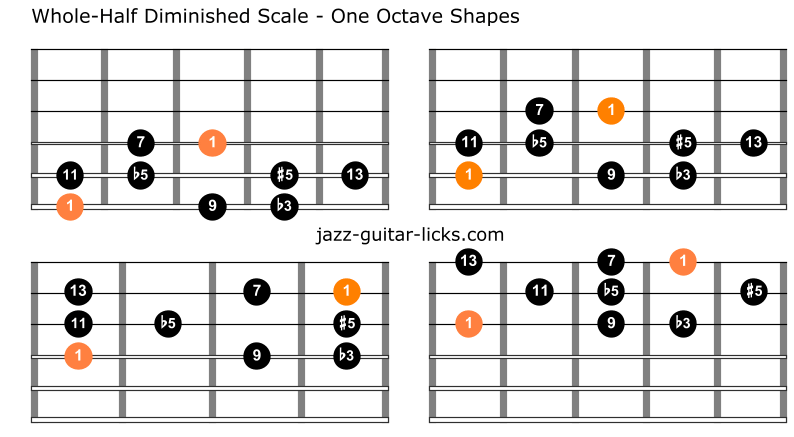

Fully Diminished One Octave Shapes

Here are four guitar fretboard diagrams representing the whole half diminished scale within the space of one octave.

It is important to start with the tonic (1) the orange dot in the diagrams. Afterwards, you can try to play these shapes from another tone.

Dont' hesitate to play the corresponding chord, in order to hear the harmony.

Once you have memorized all the fingerings you must transpose them by moving the tonic on the desired note keeping the same intervals.

As has been mentioned previously, you can move any diminished scale position up or down three frets and you will still find the same notes, this is the principle of symmetric scales.

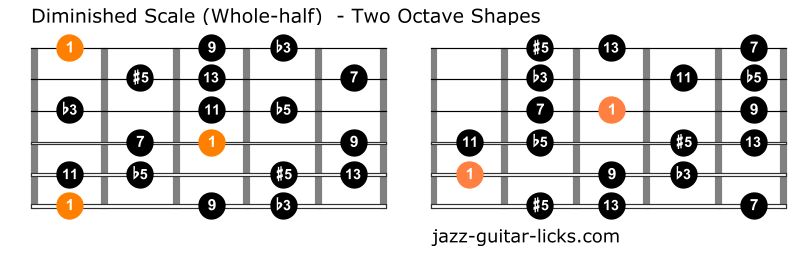

Fully Diminished Two Octave Shapes

Here are two other whole-half diminished scale shapes with notes spead out over two octaves.

Once you have memorized these fingerings you can try to create your own patterns.

For example, in minor third intervals : 1 - b3 - 11 - b3 - b5 - 11 - #5 - b5 - 13 - #5 - 7 - 13 - 1 and the opposite.

Then, try the same with other intervals: fourth, fifth, sixth...

Half-Whole Diminished Scale aka Dominant Diminished

The half-whole diminished scale or dominant diminished scale is symmetric.

As its name implies, it is built by alternating half-steps and whole-steps.

It is simply the opposite of the diminished scale (whole half) shown before in this web page.

The formula is 1 - b9 -#9 -3 - #11 (or b5) - 5 - 13 (6) - b7.

The half-whole diminished scale is widely used by jazz musicians to solo over dominant 7th chords, particularly 7b9 chords.

It can bring interesting tensions in your playing by highlighting the b9, #9 and #11.

It sounds great on the V of a major or minor II-V-I progression or the VIb9 of a I-VI-II-V progression that can be found into rhythm changes or jazz-blues tunes.

Here are the three main scales :

C dominant diminished scale	C	Db	Eb	E	F#	G	A	Bb
C# dominant diminished scale	C#	D	E	F	G	Ab	Bb	B
D dominant diminished scale	D	Eb	F	Gb	Ab	A	B	C
Formula	1	b9	#9	3	#11 or b5	5	13 (6)	b7

The C dominant diminished scale is made up of the same notes as the Eb, F# and A dominant diminished scales, as the C# contains the same notes as E, G and Bb.

The D dominant diminished scale has the same notes as the F, Ab and B half-whole scale. That's the symmetry.

To understand the symmetry, it is interesting to compare the two modes of the diminished scale:

C diminished scale	C	Db	Eb	E	F#	G	A	Bb
Intervals	H	W	H	W	H	W	H	W	H
Db dominant diminished scale		Db	Eb	E	F#	G	A	Bb	C

H = Half step - W = whole step

As it is shown in the previous chart, these two modes have the same notes.

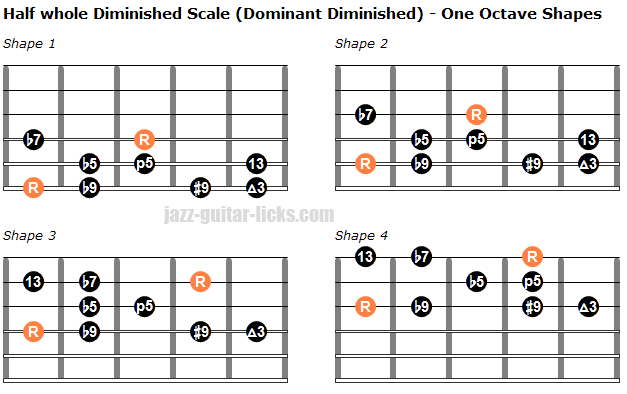

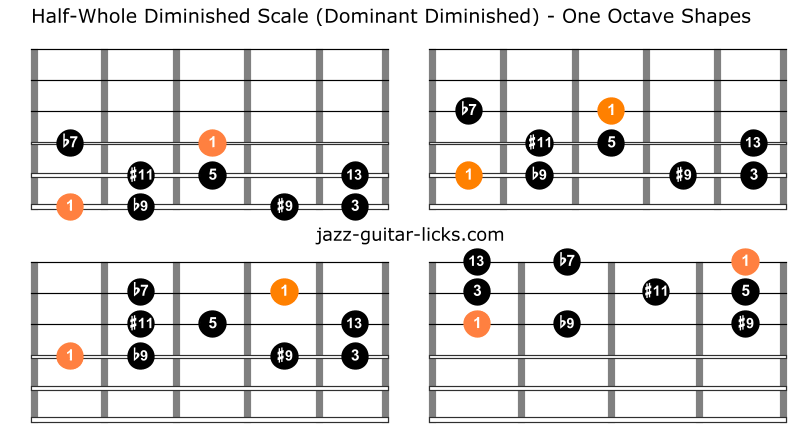

Dominant Diminished Scale One Octave Shapes

Here are four half whole scale one octave guitar diagrams.

The tonic note (1), the orange note, is the most important note of a scale. This is the note that a scale is built from.

Once you have learned and memorized these guitar positions, try to transpose them in twelve keys by moving the root up or down keeping the same intervals.

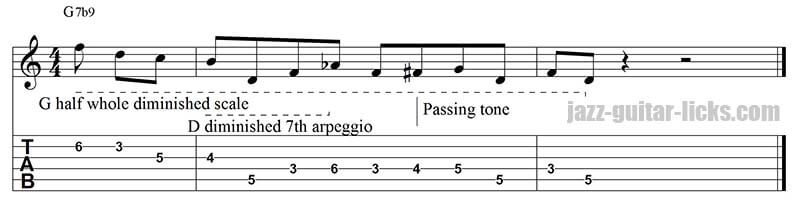

You can also create your jazz lines using patterns as it is explained before in this lesson.
