The Minor Pentatonic Scale | Guitar Lesson with Diagrams

The minor pentatonic scale is the fifth mode of the major pentatonic scale.

It is widely used in various genres, including blues, rock, jazz, and pop.

Comprising five notes per octave, it is derived from the natural minor scale by omitting the second and sixth degrees.

This results in a scale that is easy to play on many instruments, especially the guitar, and is known for its versatile, soulful, and somewhat melancholic sound.

The minor pentatonic scale is essential for improvisation and soloing, providing a framework that is both simple and expressive, making it a favorite among musicians of all levels.

This lesson provides charts, shapes and exercises to understand it and practice it on guitar.

Minor Pentatonic Scale Formula

As its name implies, the minor pentatonic scale is made of five notes ("penta" means "five and tonic means "notes"). Giving the interval pattern  Tonic (1) - minor third (b3) - fourth (4) - fifth (5) - minor seventh (b7).

A minor pentatonic scale A C D E G
Formula 1 b3 4 5 b7
Intervals W+H W W W+H W

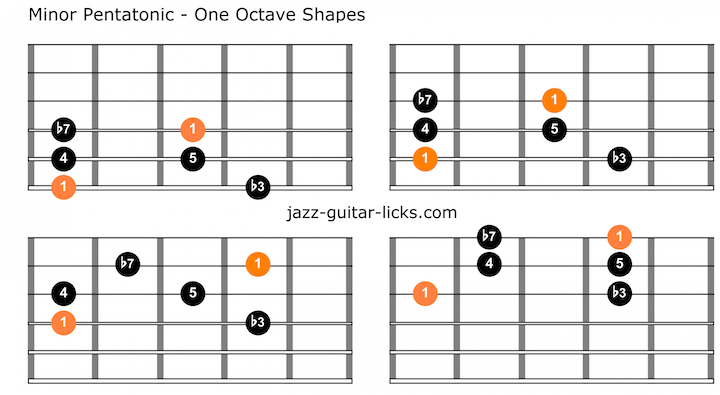

One Octave Shapes

There are many ways to play the minor pentatonic scale on guitar. The most simple is to play it within the space of one octave starting from the tonic (1), ascending and descending.

Minor pentatonic scale guitar charts

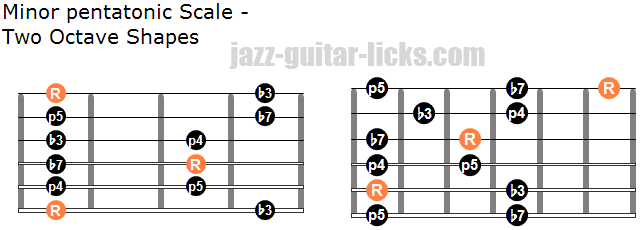

Two Octave Shapes

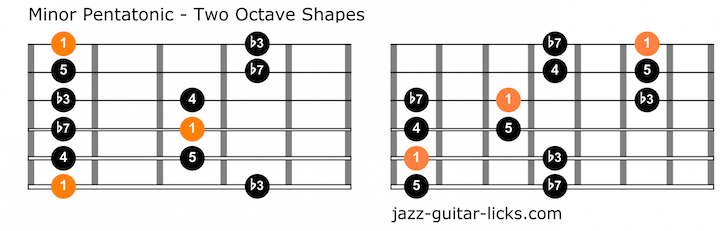

These two guitar neck diagrams show you how to play the minor pentatonic scale within two octaves in order to cover the six strings.

Minor pentatonic scale guitar positions

Five Positions of The Minor Pentatonic Scale

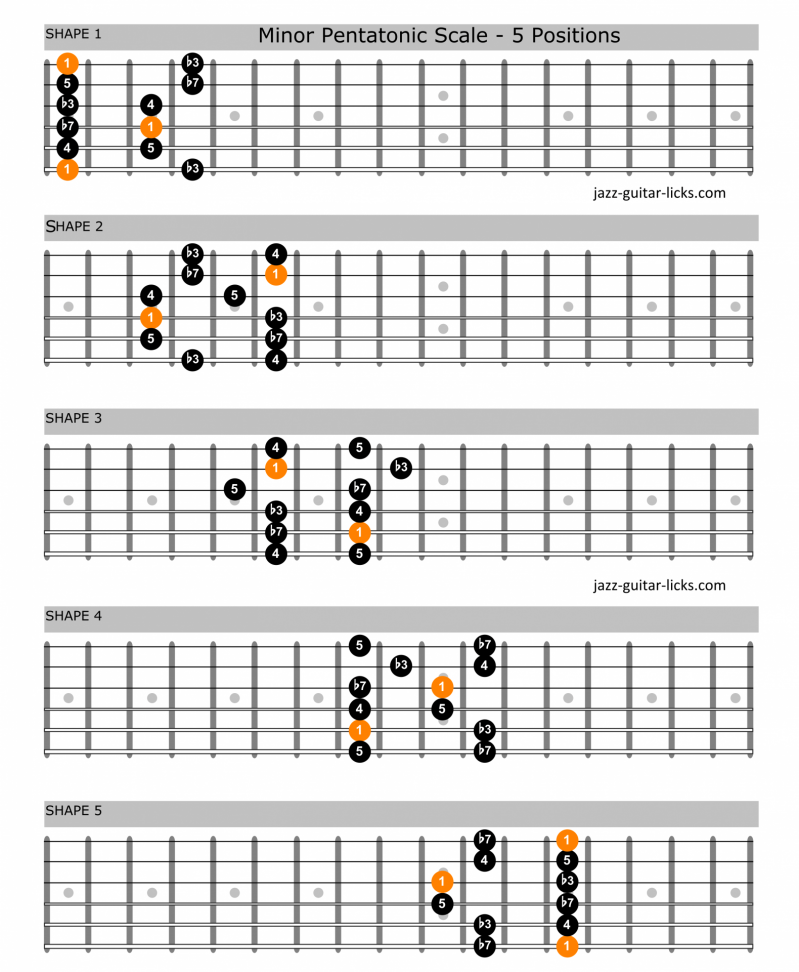

The minor pentatonic scale can be learned using what is called "Boxes".

Each boxe of the diagram represent a minor pentatonic scale position.

This technique is very useful to practice diagonal playing and position shifts.

Minor pentatonic scale guitar shapes

Difference Between Major Pentatonic and Minor Pentatonic

The minor pentatonic scale interval pattern is 1 - b3 - 4 - 5 - b7 whereas the major pentatonic scale formula is 1 - 2 - 3 - 5 - 6.

They have only two chord tones in common, the tonic (1) and the fifth (5).

Relative Major

The minor pentatonic scale as a relative major which is the major pentatonic scale. Meaning that these two scales are built with the same notes.

Major and minor pentatonic scale 1

The minor pentatonic scale starts on the sixth of the major scale. Conversely, the major scale starts on the b3 of the minor scale.

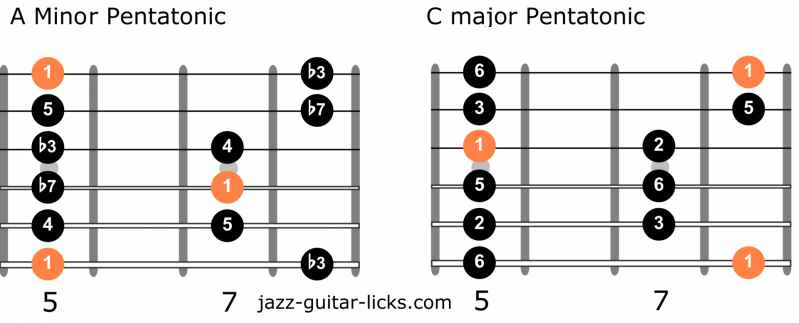

The two guitar shapes below show the relation between the A minor pentatonic scale and its relative major (C major).

As you can see and hear, their can be two pentatonic scale in the same pattern. The tonic determines the tonality.

Minor pentatonic scales guitar relative major

Difference Between Minor Pentatonic and Minor Blues Scale

The minor blues scale is no more and no less than the minor pentatonic scale with a supplementary note.

You need to know that there are three types of minor blues scales depending on the added note.

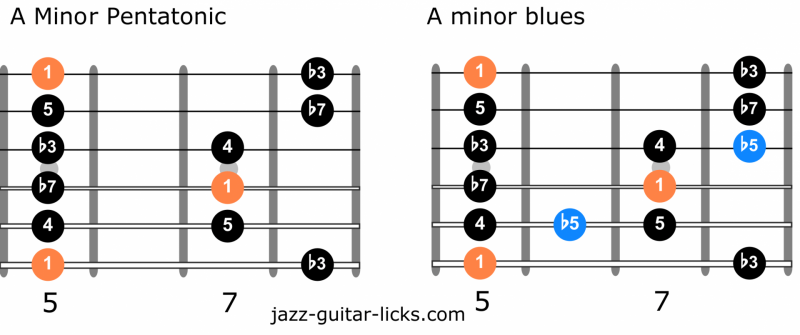

The most used is the minor blues scale with a b5 between the fourth (4) and the fifth (5).

Minor pentatonic scale vs minor blues scale

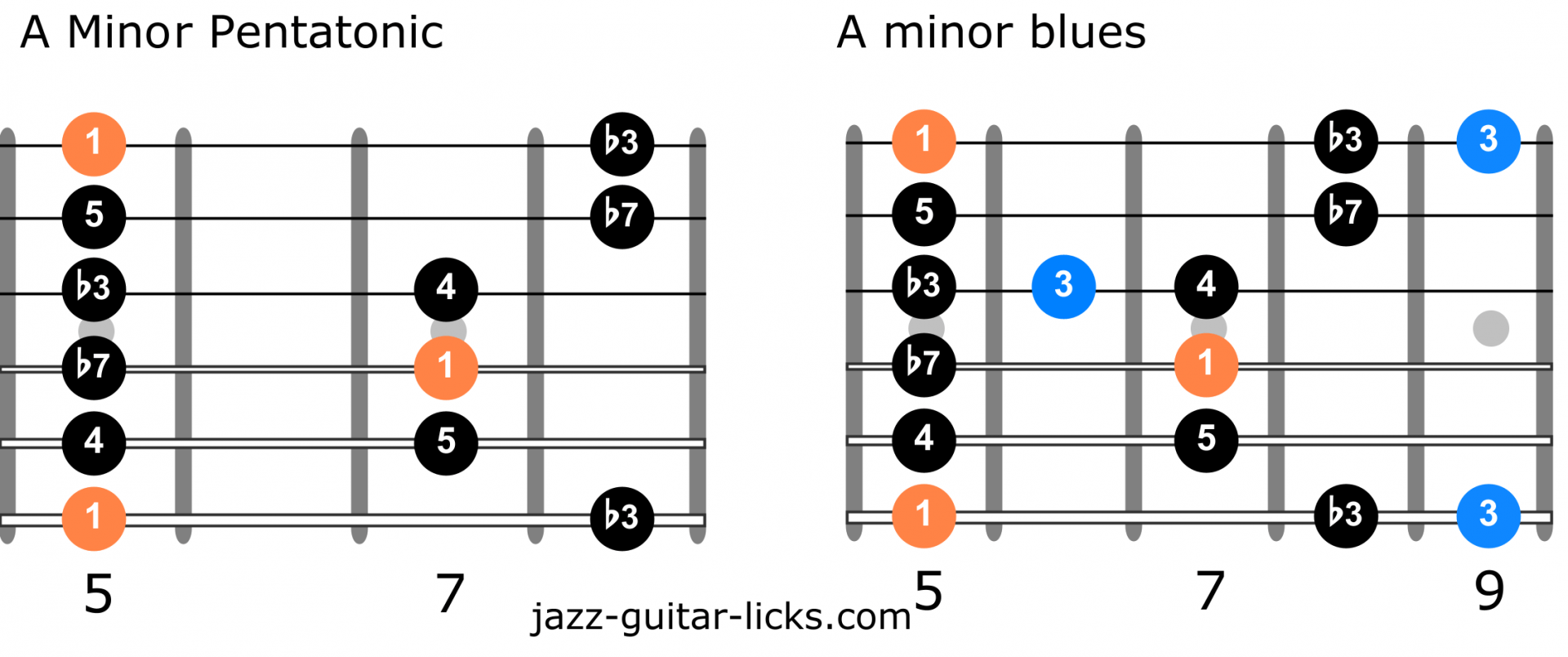

The second type of minor blues scale has a major third (3) between the b3 and the fourth.

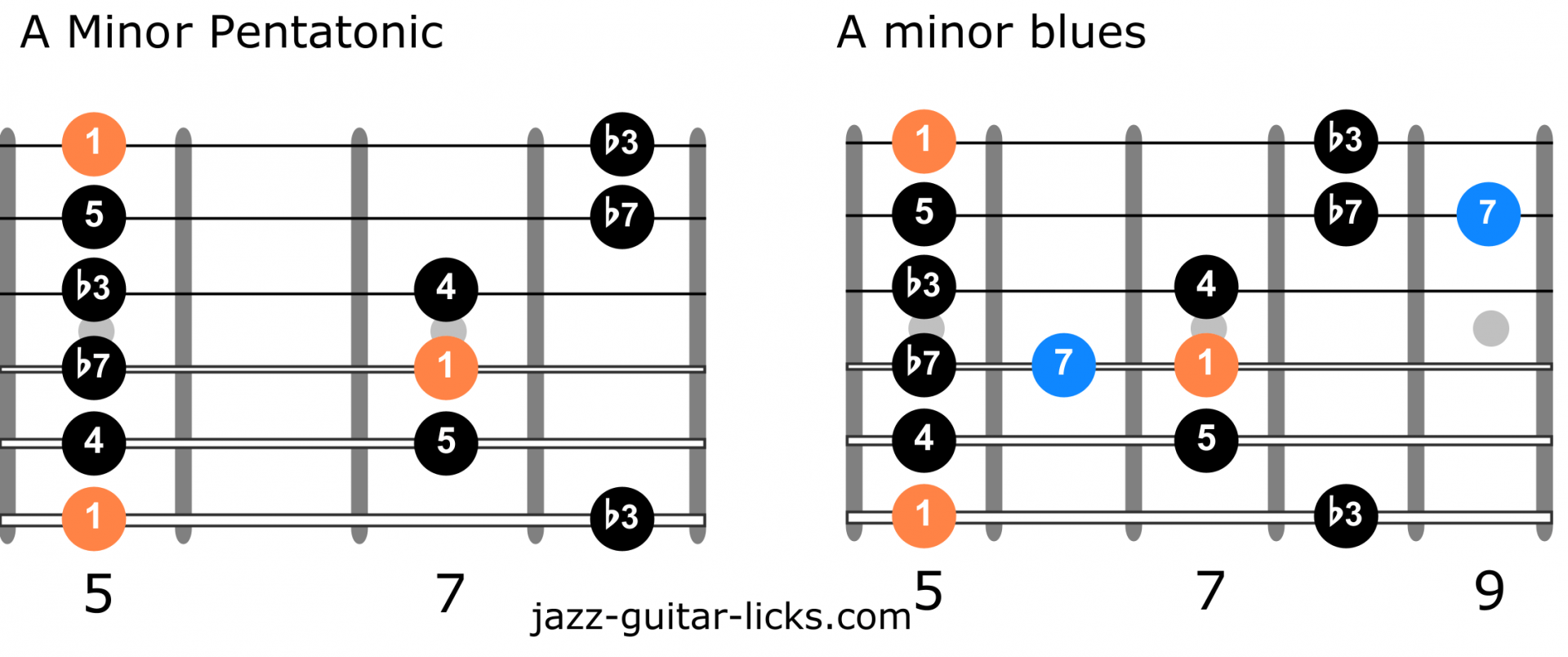

Whereas the third type has a major seventh (7) between the b7 and the tonic.

Minor pentatonic scale versus minor blues
Minor pentatonic scale vs minor blues

5 Easy Minor Pentatonic Patterns

The first two patterns are built with the G minor pentatonic scale (G - Bb - C - D - F).

Minor pentatonic scale guitar pattern 2

Minor pentatonic scale guitar pattern 1


Here are three other lines built with the A minor pentatonic scale (A - C - D - E - G).

Minor pentatonic scale guitar pattern 4

Minor pentatonic scale guitar pattern 5

Minor pentatonic scale guitar pattern 3

Minor Pentatonic Scale And Chords

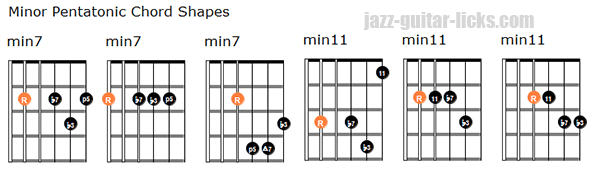

Basically, minor pentatonic scale are played over minor chord types as : minor (m), minor 7 (m7), minor 11.

Here are five examples that show how to mix the minor pentatonic scale with minor seventh chords.

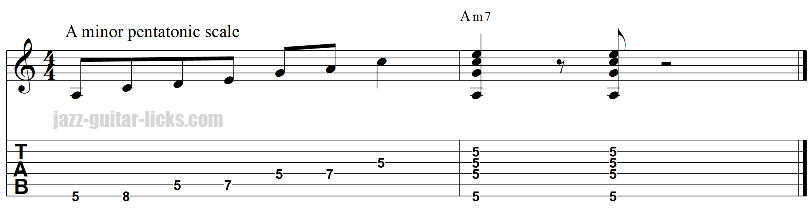

The first lick is based on the A minor pentatonic scale linked to a drop 3 min7 chord.

Minor pentatonic scale and guitar chords 1

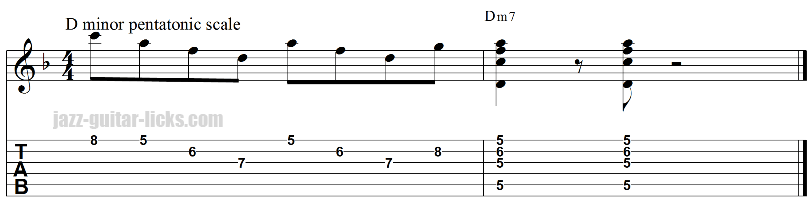

This second tab uses the D minor pentatonic scale and a drop min7 chord.

Minor pentatonic scale and guitar chords 4


D minor pent. with a drop 3 min7 chord with root note on the sixth string.

       Minor pentatonic scale and guitar chords


G minor pentatonic scale with a Gm7 drop 2 voiced with root on the fourth string.

Minor pentatonic scale and guitar chords 3


E minor pentatonic with drop 2 Em7 chord.

Minor pentatonic scale and guitar chords 5

Minor Pentatonic Scale Over II V I Progressions

Here are three exercises showing how the minor pentatonic scale can be used in a major 2 5 1 progression.

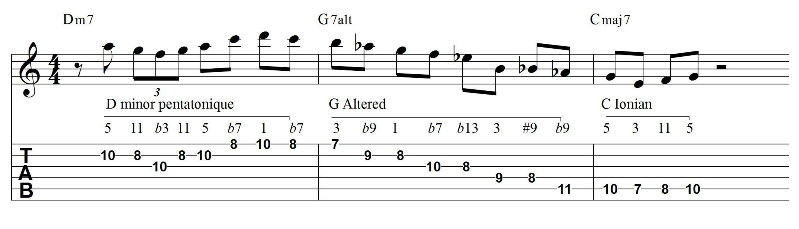

In the first example you will play D minor pentatonic scale over the ii chord (Dm7).

Minor pentatonic 2 5 1 lick 1

As you can hear in the lick below, playing Bb minor pentatonic over G7 outlines interesting altered tones as the b13, b5, #9 and b9.

Minor pentatonic 2 5 1 lick 3

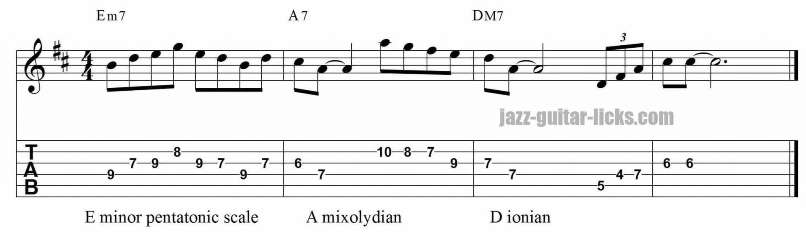

In this last line Em pentatonic is played over Dm7 in order to highlight the ninth (9), eleventh (11) and thirteenth (13).

Minor pentatonic 2 5 1 lick 2

Soul Jazz Guitar Lick

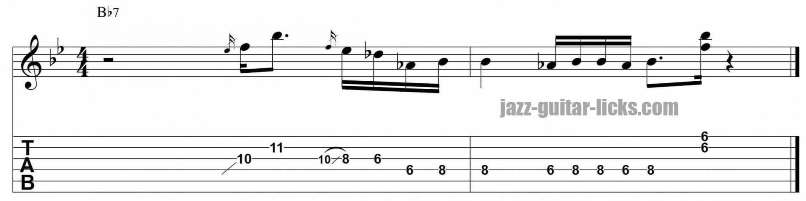

Here is a soul, jazz guitar lick using notes from the Bb minor pentatonic scale (B- D- Eb - F - Ab)

It starts and ends with a perfect fourth (F-Bb). This lick is taken from the 25 SOUL JAZZ GUITAR LICKS PDF Method

Soul jazz guitar minor pentatonic lick

Kenny Burrell | Minor Pentatonic Jazz Blues Licks

Here are 10 easy guitar lines using the C minor pentatonic scale transcribed from Kenny Burrell's guitar solo on "Chitlins con carne" from the album midnight blue.

Chitlins Con Carne - Kenny Burrell

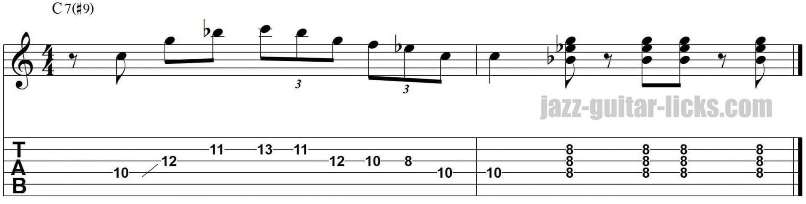

Chitlins Con Carne is a jazz blues tune in C7 mainly built with the C minor pentatonic scale.

This is a good example to demonstrates how the minor pentatonic scale can be played on an entire blues tune and mixed with dominant chords.

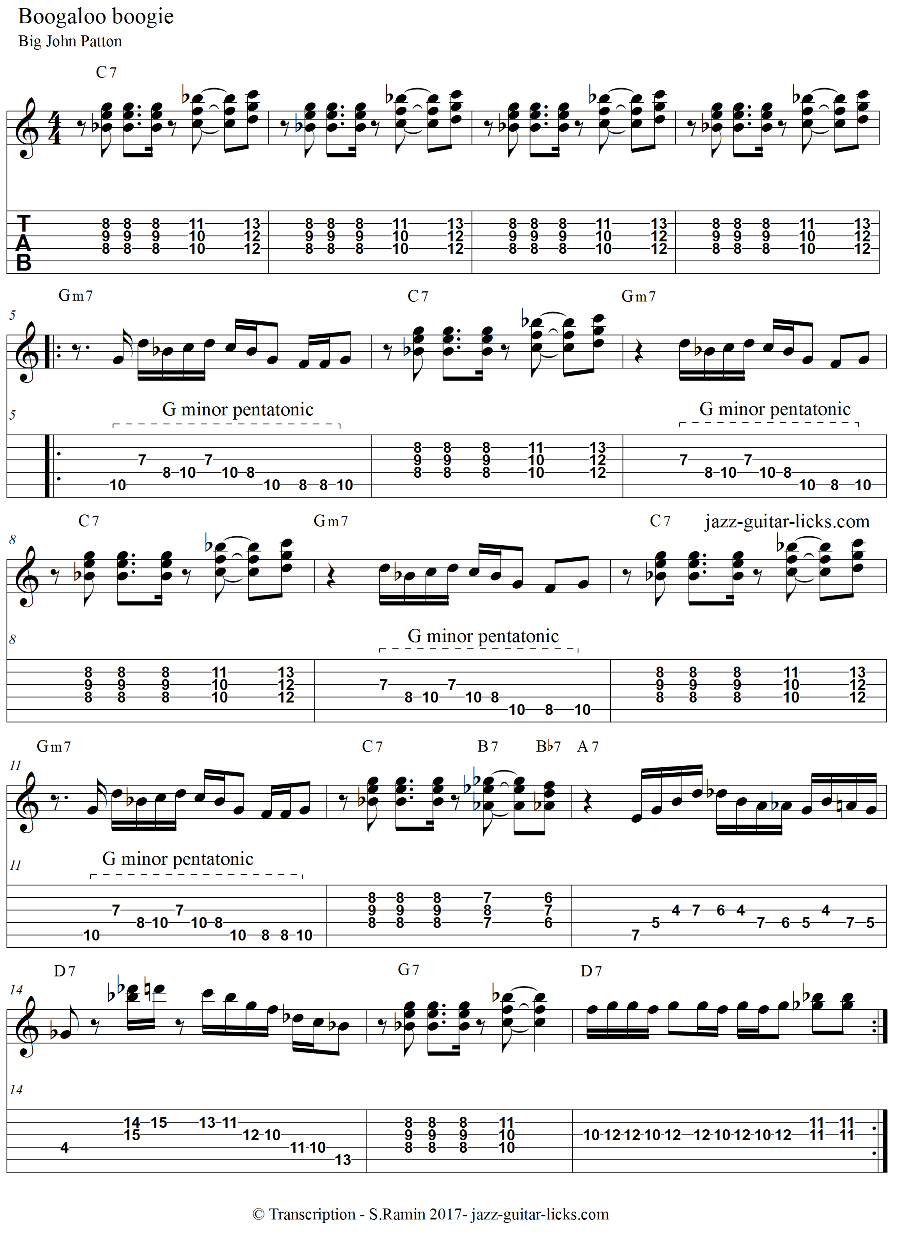

Boogaloo Boogie - Big John Patton

Boogaloo boogie is one of the most famous tune of Big John Patton jazz, blues organist. It has been recorded by Stanton Moore with guitarist Charlie Hunter on the album "All Cooked Out".

The theme contains a repetitive G minor pentatonic line mixed with some rootless dominant seventh chords and chords in fourths.
